EMC VNX5400 SAN Storage

[spb_icon_box box_type=”left-icon” image=”ss-like” color=”standard” target=”_self” animation=”none” animation_delay=”0″ el_class=”sf-icon-box” width=”1/3″ el_position=”first”]

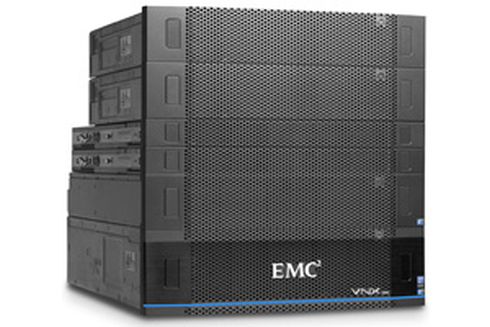

EMC VNX5400

an ideal mid-Enterprise SAN system – scaling to 1 Petabyte of storage

[/spb_icon_box] [spb_text_block pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/6″] [/spb_text_block] [spb_text_block pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/2″ el_position=”last”]
EMC VNX5400
EMC VNX Logo
EMC VNX Series
[/spb_text_block] [blank_spacer height=”10px” width=”1/1″ el_position=”first last”] [spb_icon_box title=”Overview” box_type=”left-icon” image=”ss-highvolume” color=”standard” target=”_self” animation=”none” animation_delay=”0″ width=”1/3″ el_position=”first”]

Rev up application performance like never before with VNX5400 unified storage systems. These data storage systems feature MCx for multicore optimisation that delivers a four-fold increase in transaction performance over previous EMC VNX systems. Get high performance and low latency for virtualisation and IOPS-intensive applications.

Deduplication, compression and thin provisioning reduce your SAN and NAS storage requirements dramatically. Choose FAST Suite to automate storage tiering, and you’ll benefit from the best performance at the lowest cost. Protect data with options including Data-at-Rest Encryption, point-in-time snapshots and remote replication.

[/spb_icon_box] [spb_text_block pb_margin_bottom=”no” pb_border_bottom=”no” width=”1/6″]

.

[/spb_text_block] [spb_icon_box title=”Data Sheets” box_type=”standard-title” image=”ss-checkfile” color=”standard” target=”_self” animation=”none” animation_delay=”0″ el_class=”sf-icon-box” width=”1/6″]
[list] [list_item icon=”ss-file”]EMC VNX 5200_5400 Specification Sheet 2014[/list_item] [list_item icon=”ss-file”]EMC VNX Family Datasheet 2014[/list_item] [/list]
[/spb_icon_box] [spb_icon_box title=”Related” box_type=”standard-title” image=”ss-checkfile” color=”standard” target=”_self” animation=”none” animation_delay=”0″ width=”1/6″]
[list] [list_item icon=”ss-layers”]Integrated Data Storage Review[/list_item] [list_item icon=”ss-layers”]EMC Releases Next Generation of VNX Arrays![/list_item] [list_item icon=”ss-layers”]Inside BIGDATA article[/list_item] [/list]
[/spb_icon_box] [spb_icon_box title=”Case Studies” box_type=”standard-title” image=”ss-checkfile” color=”standard” target=”_self” animation=”none” animation_delay=”0″ width=”1/6″ el_position=”last”] [list]
[list_item icon=”ss-link”]Coming Soon[/list_item] [/list]
[/spb_icon_box] [blank_spacer height=”10px” width=”1/1″ el_position=”first last”]



 VNX5400
 Min/Max Drives  4/250
 Max FAST Cache  1 TB
 Drive Enclosure Options  25×2.5″ SAS/Flash drives-2U15x3.5″ SAS/Flash drives-3U60x3.5″ SAS/Flash drives-4U
 CPU / Memory per Array  2 x Intel Xeon ES-2600 4-Core 1.8 GHz/32 GB
 Max Block Ultraflex IO Modules per Array  8
 Raid Options  0/1/10/3/5/6
 Max Total Ports per Array  36
 # File Data Movers  1-4
 # Control Stations  1-2 x 1U Server
