Nexsan

nexsan corporate logo 150 Nexsan

NexSan – offers enterprise-class storage at price points up to 1/10th the cost of traditional disk-based storage solutions.

NexSan products are the first to offer or AutoMAID (Automatic Massive Array of Idle Disks), a policy-based intelligent “green” energy saving technology. AutoMAID epitomizes the MAID 2.0 concept in which power consumption is dramatically reduced without sacrificing performance.

Since its founding in 1999, Nexsan has sold its products exclusively through a select, global network of VARs, OEMs, and system integrators and have deployed over 27,000 systems to more than 60 countries.

NexSan B60E Image Nexsan

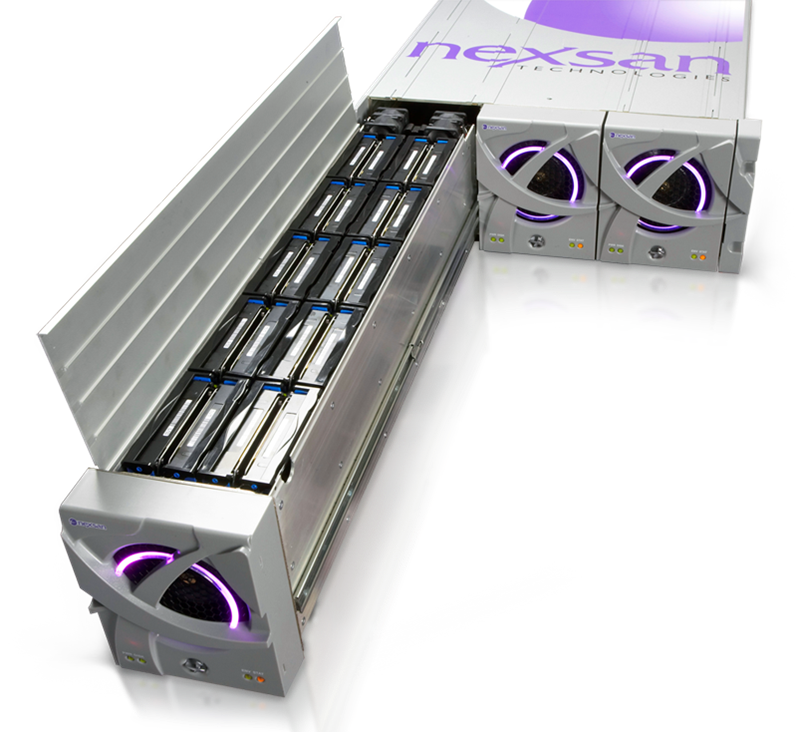

Nexsan E60 iSCSI and FC SAN

  • Up to 180TB in 4U using 3TB drive
  • Three sliding active drawers for easy servicing
  • Combine SAS, SATA and SSD disks
    • and choose any groupings for RAID
  • AUTOMAID® level 4 reduces energy consumption by 85%
  • Optional 10Gbit iSCSI replaces 8Gb Fibre Channel portsay
NexSan E5110 NAS front Nexsan

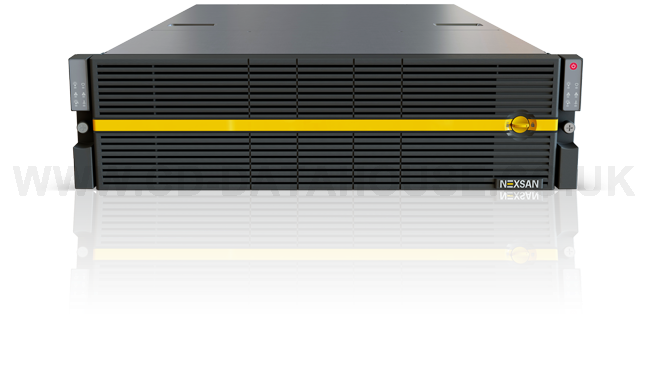

Nexsan E5000 NAS Family for NFS/CIFS

  • Entry Level E5110 model from 8-62TB
  • Mid Level E5310 model from 8-720TB
  • Utilises NexSan E60 and E18 SAN family for storage attachment to the E5000 family NAS heads
  • Up to 1.5TB of SSD storage for high speed read caching
  • NFS and CIFS support
  • Active Directory and LDAP Integration
  • 1Gbe and 10Gbe connections
NexSan SASBeast1 Nexsan

Nexsan SASBeast

  • 42 drive bays in only 4U – up to 25.2TB of SAS capacity
  • Exceptional IOPS and throughput performance
  • Supports hardware RAID 0, 1, 1+0, 4, 5 and 6
  • Up to 4 RAID engines and 4GB battery protected cache when using dual controllers
NexSan Satabeast Nexsan

Nexsan SATABeast

  • Up to 84TB, 42 SATA drives in 4U of Rack Space
  • Over 800 MB/s sustained throughput
  • All active components are redundant and individually hot-swappable
  • Supports RAID 0, 1, 1+0, 4, 5 and 6
  • Up to 2GB cache per controller
NexSan E18 SAN side open Nexsan

NexSan E18

  • 18 SAS, SATA or SSD drives in a 2U Chassis
  • Dual Active Active RAID COntroller, with iSCSI and FC
  • Supports RAID 0, 1, 1+0, 4, 5 and 6
NexSan sataboy Nexsan

Nexsan SATABoy

  • 14 SATA drives in only 3u of rack space
  • High capacity – up to 14 TB in only 3U
  • Dual function Fibre Channel and iSCSI connectivity with wire-speed performance
  • Supports RAID 0, 1, 1+0, 4, 5 and 6
NexSan sasboy Nexsan

Nexsan SASBoy

  • 14 SAS drives in only 3U of rack space
  • High capacity – up to 4.2 TB in only 3U
  • High performance RAID solution built around the latest high performance SAS disk drives
  • High availability – All mission critical components, including RAID controllers, are hot swappable and fully redundant
nexsan dedupe sg Nexsan

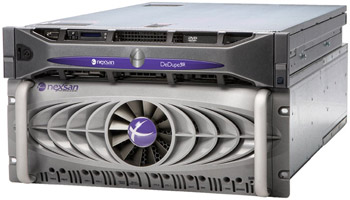

NexSAN SG-DeDupe

  • DeDuplication with WAN Replication
    • Achieve  deduplication ratios of 10-30x and greater
  • Save Time – up to 750MB/s via CIFS and NFS
  • Save Energy – save 60% in energy between backups using AutoMaid spindown
iseries Nexsan

Nexsan iSeries

  • Combine SAS + SATA in the same chassis for the ultimate in application flexibility
  • Unique multi-path / multi-access architecture provides continuous data access
  • SAN controllers are independent and active/active
  • Up to 4GB of cache and 4 RAID engines
NexSan satabeastxi Nexsan

Nexsan SATABeast Xi

(for MAC Environments)

  • Up to 84TB, 42 SATA drives in 4U high box(29” deep)
  • Over 800 MB/s sustained throughput
  • All active components are redundant and individually hot-swappable
  • Supports RAID 0, 1, 1+0, 4, 5 and 6
  • Up to 2GB cache per controller
